Description
Product details

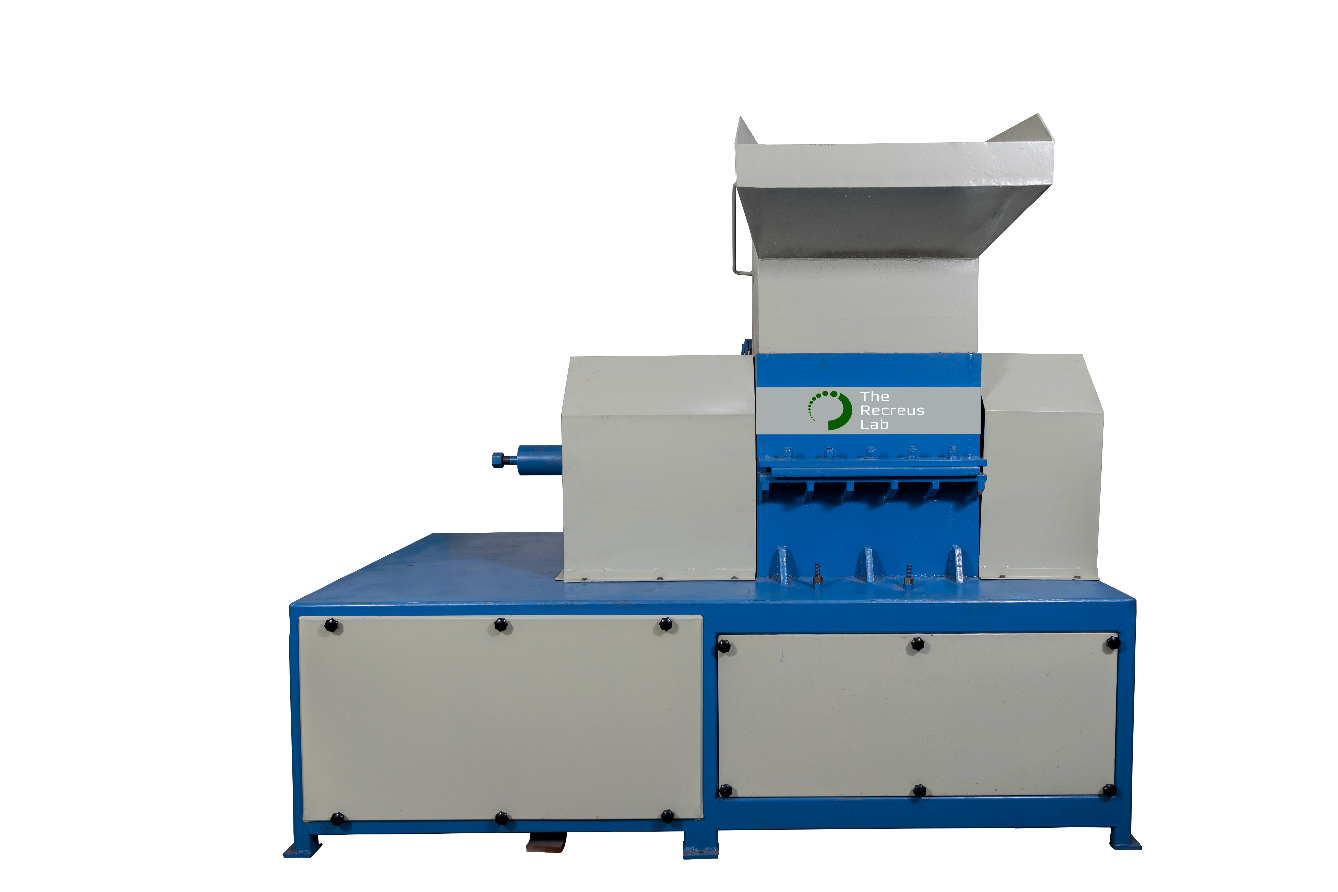

⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) Frame & body made from Mild steel & Powder coated 2) Upgraded Table with Jig Saw Cutting Blade with protection cover 3) 40 HP Three phase motor 4) Auto Forward – Reverse available 5) Output Capacity: 800 -900 kg/hour (Depending upon material) 6) Screen Size: 25-32mm (Customized as per the output size needed) 7) Suitable for every types of plastic like: PET, LDPE, PVC, HDPE, PP, DS, EDS, ABS etc. It is also suitable for aluminum cans & glass bottles. ⮚ SPECIFIC DATA 1) Grinder Box Made Of High Grade Mild Steel. 2) Upgraded Step Rotor System 3) Heavy-duty single-piece cast load wheels on both sides for enhanced efficiency. 4) Cast pedestal and pulley housing for superior strength. 5) Hardox EN Steel grade Blades: 2 fix , 8 rotating 6) Size of crushing chamber: 800 x 800 mm 7) Rotary Dia : 565 mm Main Shaft Dia : 150 mm Main Shaft Dia: 150 mm 8) Voltage: 415, 3 Phase (Customize to 220/380/440 V as per specific input) 9) Main Motor: AC Motor 40 HP (Upgraded till 40 HP as per the input raw material size & to archive higher grinding capacity till 800 -900 kg/hr) 10) Hopper Loader: Jacketed M.S. Fabricated Hopper with sound proof design 11) Additional Feature: Safety hopper and Coupling cover. 12) Standard Electric paneling and wiring. ⮚ PROCESS CONTROL PANEL (Siemens make, Germany) 1) MCB: Siemens make MCB in line 2) Motor Protection circuit board 3) Other Electrical Outfits: Contactors, Synchronization card, & standard cord wiring with PVC conduct channel framing. 4) Phase Synchronizer and Over Voltage Protection as per CE Standard.
