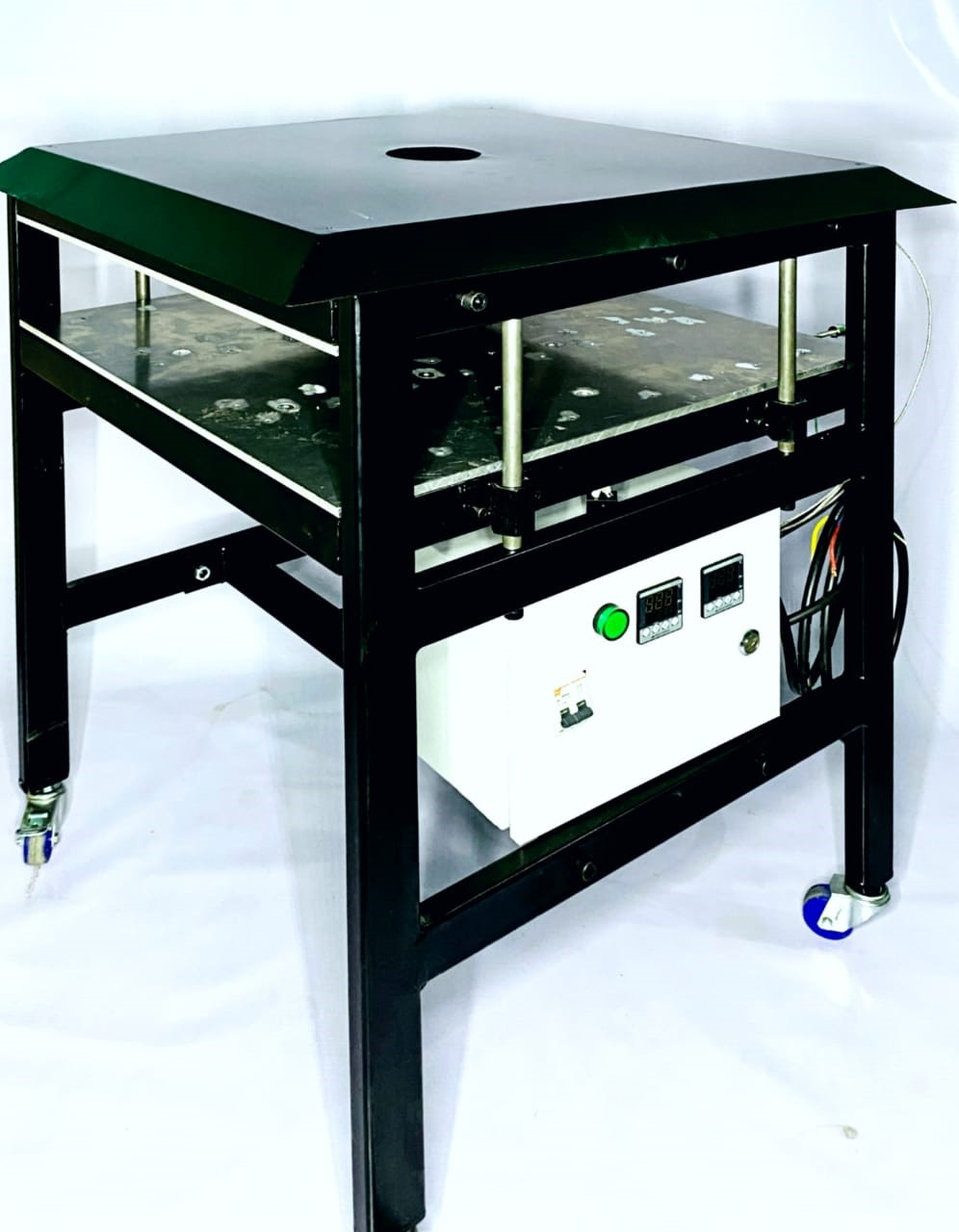

1000 x 1000 Sheet Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 1200 x 1200 mm Aluminum base attached with plate heaters and whole supporting heavy duty structure: 1nos 2) Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap 2) Size to be manufactured: 1000 x 1000 mm Sheets 3) Output capacity: Depending upon material used. 4) Recommended Mold size: 1050 x 1050 mm Top & bottom plates and frame. 5) Max. Sheet Output: 1 sheet per hour max. 6) Advanced Temperature control panel with power saving technology. 7) Total Connected Load: 15* kW (Approx.) (3phase) ⮚ MAIN SHEET PRESS 1. Supporting structure MS Powder coated. 2. 6 mm Top & bottom aluminum plates. 3. 20 Heating plates each side mounted on aluminum plates to ensure equal distribution of heat. 4. 10-50 Ton standard Manual Jack at the bottom of the pressing system with pressure gauge. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. ⮚ PROCESS CONTROL PANEL: 1. Temp. Controllers: PID Controller with Auto tuning & dual display 2. MCB: Reputed make MCB in line with every heating zone supply 3. Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. 4. Phase Synchronizer and Over Voltage Protection as per CE Standard. ⮚ Physical Machines: 1. Dimensions: L: 1500 B: 1350 H: 1600 MM 2. Weight: 550 KG 1000x1000 mm Cold Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 1200 x 1200 mm MS Plate base attached with plate and whole supporting heavy duty structure: 1nos. ⮚ MAIN SHEET PRESS 1. Size to be manufactured: 1000 x1000 mm Sheets 2. Supporting structure MS Powder coated. 3. 2 mm Top & bottom MS plates. 4. 10 Ton standard Manual Jack at the bottom of the pressing system with pressure gauge. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. ⮚ Physical Machines: 1. Dimensions: L: 1500 B: 1350 H: 1600 2. Weight: 550 KG
