Description
Product details

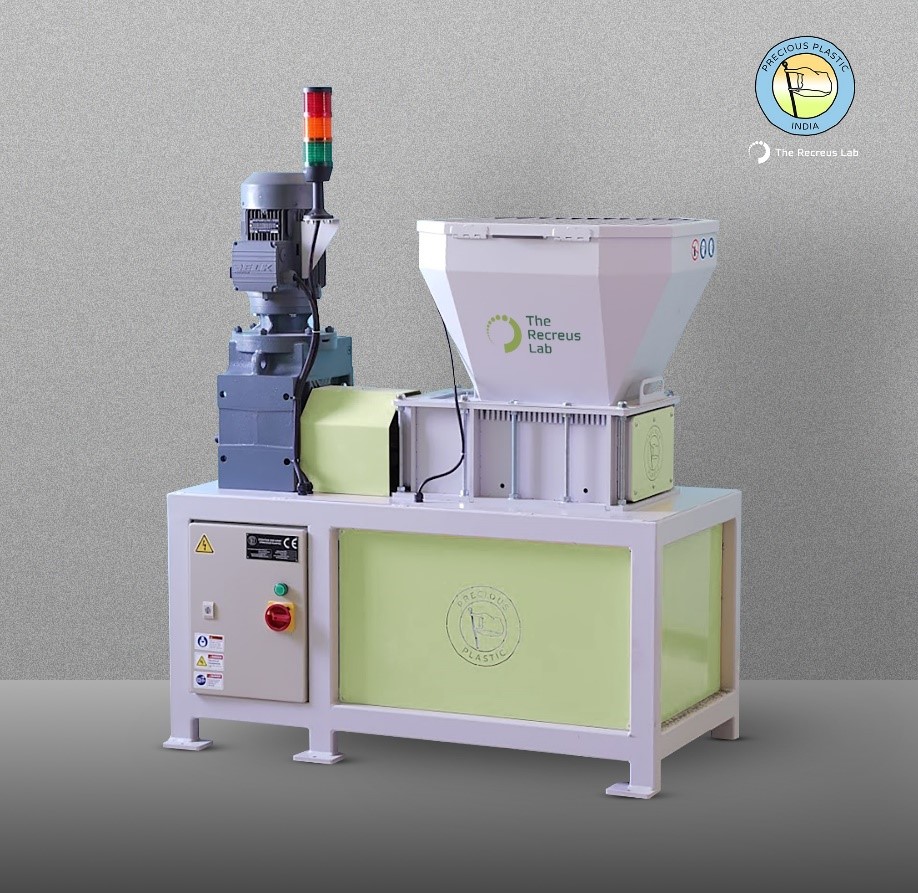

⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) Frame & body MS Powder coated, Double shaft 2) 10 HP Three phase motor 3) 20 rpm gearbox NMRV130 4) Strong & Durable Mild steel Shredder box 5) Advance housing system with HRC coupling & Taper Bearing 6) Output Capacity: 60-100 kg/hour (Depending upon material) ⮚ SPECIFIC DATA 1) Shredder Box Made Of High Grade Mild Steel.(Laser Cut) 2) Cutting chamber size: 400 x 400 mm 3) Output particle size: Uneven mixed, medium pieces (Sieve Optional) 4) Transmission type: Shaft mounted gearbox 5) Cutting blades thickness / Nos : 16 mm / 24 nos (3 hooks) 6) Hopper opening size: 70x50x40 cm LBH 7) Voltage: 220V/380V/430V, 3 Phase ( Single Phase option is also available) 8) Main Motor: AC Motor 7.5 Hp (Can be upgraded to 10 Hp) 9) Advance design Sound Proof Hopper Loader: M.S. Fabricated 10) Structure: MS fabricated heavy‐duty structure made from angles, channels and Covered with sheet 11) Additional Feature: Safety hopper and Coupling cover. ⮚ PROCESS CONTROL PANEL ( Siemens Made) 1) Control Panel with Advance Safety features 2) Other Electrical Outfits: Siemens make MCB, Contactors, Synchronization card, & standard cord wiring with PVC conduct channel framing. 3) Phase Synchronizer and Over Voltage Protection as per CE Standard.
