Description
Product details

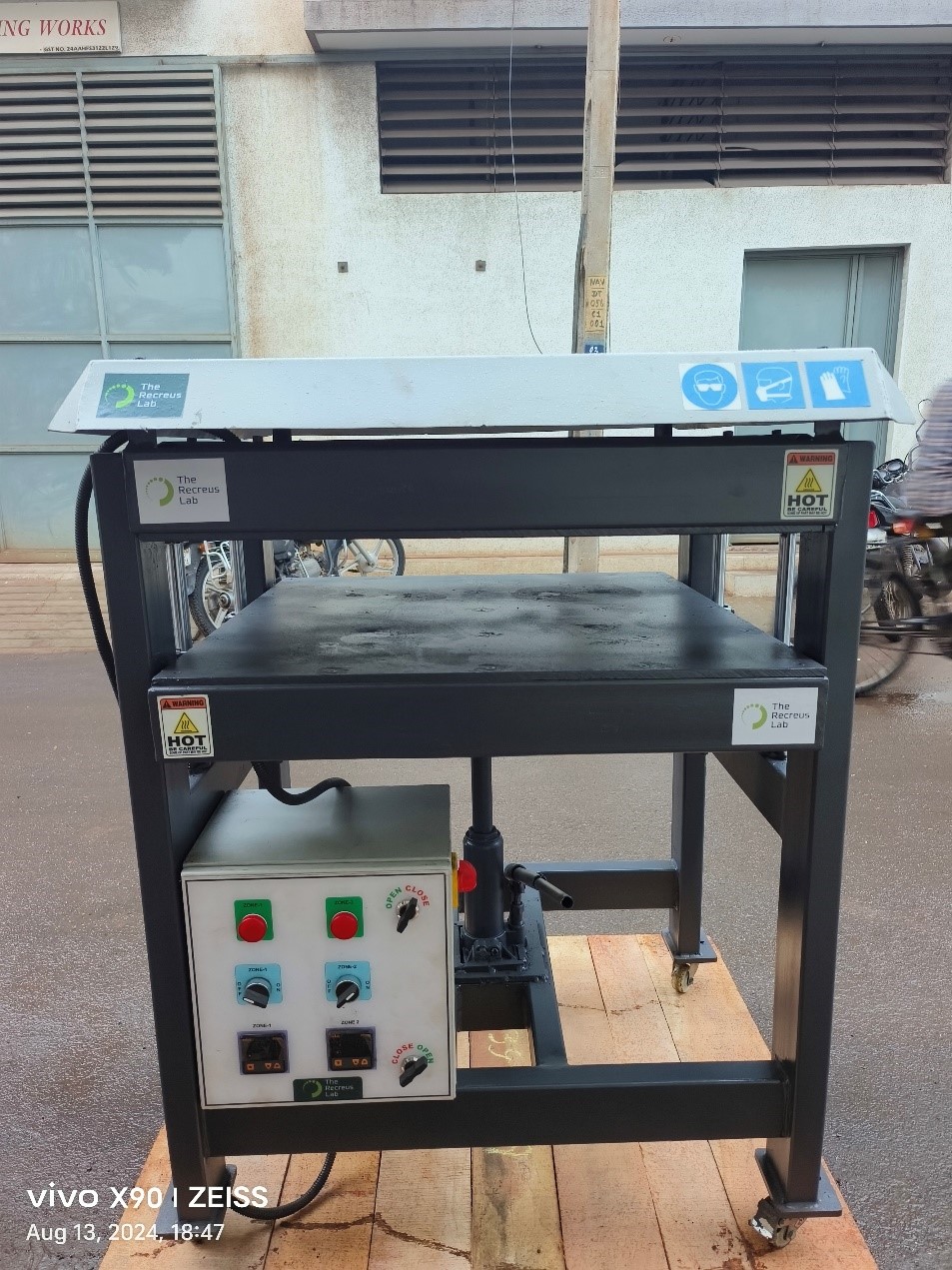

400x400 MM Hot Sheet Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 450 x 450 mm Aluminium base attached with plate heaters and whole supporting heavy duty structure: 1nos 2) Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap 2) Size to be manufactured: 400 x 400 mm Sheets 3) Output capacity: Depending upon material used. 4) Recommended Mold size: 450 x 450 mm Top & bottom plates and frame. 5) Max. Sheet Output: 1 sheet per hour max. 6) Advanced Temperature control panel with power saving technology. 7) Total Connected Load: 4* kW (Approx.) MAIN SHEET PRESS 1. Supporting structure MS Powder coated. 2. 8 mm Top & bottom aluminum plates. 3. 4 Heating plates each side mounted on aluminum plates to ensure equal distribution of heat. 4. 5 Ton standard Jack at the bottom of the pressing system. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. 6. Standard Smoke suction system with advance filtration. ⮚ PROCESS CONTROL PANEL 1. Temp. Controllers: PID Controller with Auto tuning & dual display (OMRON) 2. MCB: Reputed make MCB in line with every heating zone supply 3. Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing.
